Orginal DBL GOIP 1 Chip GSM Gateway (IMEI Change, 1 SIM Card, SIP & H.323, VPN PPTP).SMS GSM VOIP Gateway – Promotion

$145.99 $106.57


Orginal DBL GOIP 1 Chip Channel GSM Gateway (IMEI Change,1 SIM Card, SIP & H.323, VPN PPTP).SMS GSM VOIP Gateway-Promotion

Related Products:

Note:All our products are origninally manuafactured.100% new, any fake products, we promise fullly refund.Original is highly quality guaranteed,and we provide lifetime free tech support,also will test 24 hours to make sure it’s all functional before delivery.

Application:
The basic use of our GOIP/VOIP as follows:
PSTN->VOIP,
VOIP->PSTN,
Telephone is a common phone. Softswitchis software installed in a computer. It looks upon as a server, Goip looks as client. The scheme needs GoIP,telephone,softswitch,another phone login softswitch through common Gateway device. Then you can PSTN->VOIP and VOIP->PSTN

Call Back

Summary
GoIP GSM Gateway bridges the GSM services and the IP networks. It is ideal for VoIP to gsm services where a fixed telephone line (PSTN) is not available or for cell phone roaming via the VoIP network.
GoIP GSM Gateway is designed to work in conjunction with key phone systems and IP-PBX to provide GSM communications. The extensive compatibility of the GoIP makes it an ideal choice to be deployed in multi-vendor open architecture VoIP networks.
GoIP GSM Gateway is a great way to provide fast phone service deployment where regular PSTN line may not be readily available. GoIP GSM gateway also provides significant savings in usage (long distance or international), infrastructure and maintenance cost compared to conventional PSTN.

Benefits of GoIP
Extensive product compatibility with industry leading vendor
Cost-Savings on phone calls between mobiles or to PSTN
Easy to install – IP device with Web based management interface
Can be managed and monitored remotely over Internet – a great service to offer to customers by system integrators
GoIPs can be grouped together to establish GSM gateway cluster
Termination between GSM/VoIP
Schedule or on-demand SMS Broadcast messages to users
(Additional SMS server is required)

Key Features
Open Standard VoIP Protocols (ITU H.323 V4 and IETF SIP V2)
Single Server Registrations
SIP peer-to-peer mode
SIP proxy mode
GSM module – 850MHz, 900 MHz, 1800 MHz, 1900MHz
Advanced jitter buffer
VLAN and QoS support
NAT Transversal
Call forward from GSM to VoIP and VoIP to GSM
Password or Trust list protection for dial in mode and dial out
Comprehensive dial Plan
Retransmit GSM Caller ID to VoIP terminal
Dynamic selection of codecs
Echo cancellation for Speakerphone
Comfort noise generation (CNG)
Voice activity detection (VAD)
Firmware upgrade from GUI

Basic Features
LEDs for Power, Ready, Status, WAN, PC, GSM
Call forward from GSM to VoIP and VoIP to GSM
Dial in mode or dial out mode only
Dial Plan
Password protection for both GSM dial in or dial out
Retransmit GSM Caller ID to VoIP terminal

Enhanced Features
Dynamic selection of codec
Advanced jitter buffer
Automatic traversal of NAT and firewall
VLAN / Qos
Router
Echo cancellation for Speakerphone
Comfort noise generation (CNG)
Voice activity detection (VAD)
Auto provisioning (requires auto provisioning server)
On line firmware upgrade
Multi-language support: English and Chinese

Supported Standards
ITU: H.323 V4, H.225, H.235, H.245, H.450
RFC 1889 – RTP/RTCP
RFC 2327 SDP
RFC 2833 RTP Payload for DTMF Digits, Telephony Tones and Telephony Signals
RFC 2976 SIP INFO Method
RFC 3261 SIP
RFC 3264 Offer/Answer model with SDP
RFC 3515 SIP REFER Method
RFC 3842 A Message Summary and Message Waiting Indicator
RFC 3489 Simple Traversal of User Datagram Protocol (UDP) Through Network Address Translators (NATs)
RFC 3891 SIP Replaces Header
RFC 3892 SIP Referred-By Mechanism
draft-ietf-sipping-cc-transfer-04 Session Initiation Protocol Call Control – Transfer
Codec: G.711 (A/µ law), G.729A/B, G.723.1
DTMF: RFC 2833, In-band DTMF, SIP INFO

Free roaming
In order to promote our product ,Now we have added some new funcitions in GoIP.By adding the new funcitions,you can build the call without using the softwhich or platform,just depending on the internet.it makes our calls more convenient and easier.what’s more, it can save a lot of call fee.Here is the following example:

Example
peer to peer:it is a new function that you can use our voip without platform,what is more,it is free roaming for international call.you just pay the local call

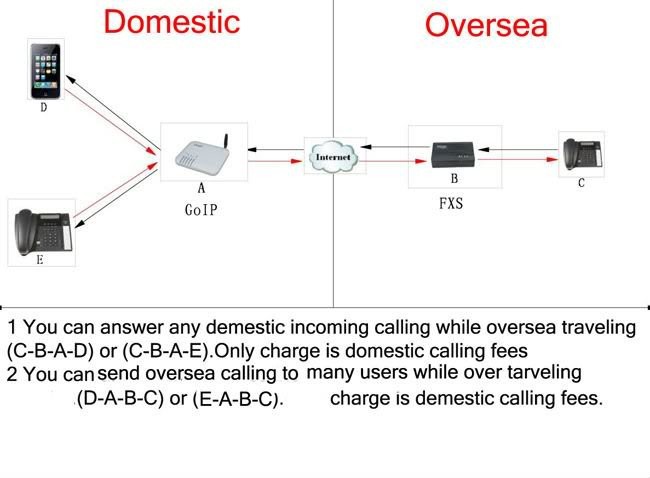

Solution1
787794329_249

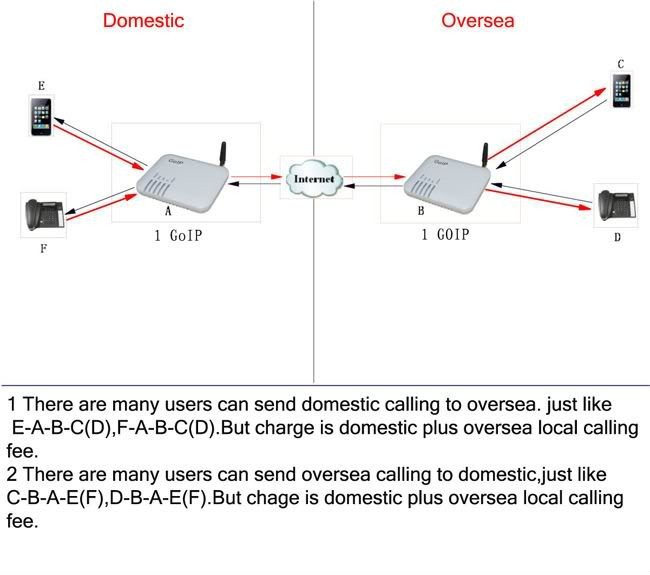

Solution2
787794332_228

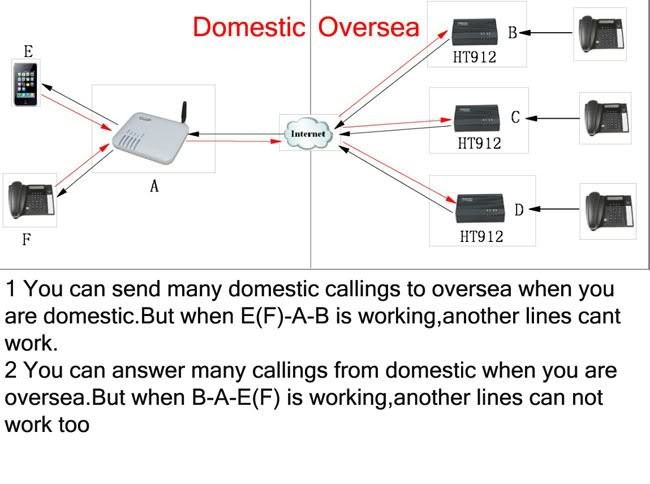

Solution3
787794330_891

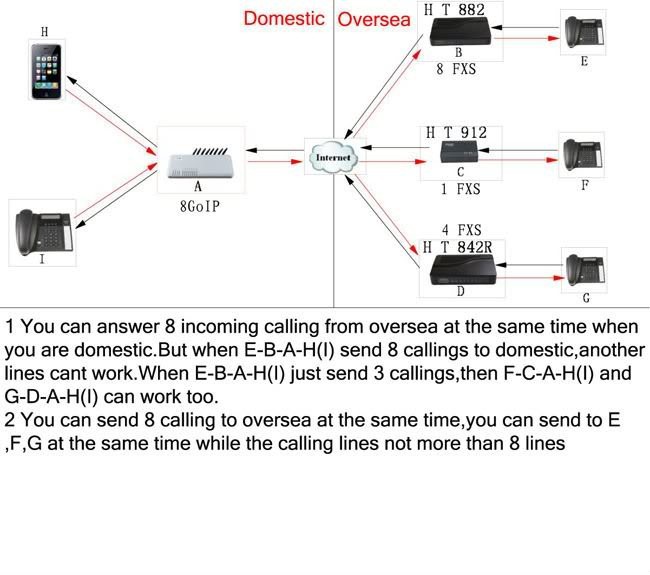

Solution4

787794328_197
package include
1 pc goip gateway

1 pc of power supply

1 pc of Ethernet cable
image image image
Weight 0.5 kg
Dimensions 23.0 × 20.0 × 9.0 cm
Brand Name

Uxeitoo

Type

VoIP Gateway

Color

White

is_customized

Yes

Model Number

GOIP

Protocol

SIP&H.323
